Aerospace Component: Door Latch

WIDIA™ offers machining strategies and innovative tooling technology specifically engineered for the aerospace industry to increase productivity and reduce cost.

Machining Processes:

Twelve tools were used to machine the Titanium (TI6Al4V) door latch component on a DMG 65U 5-Axes machine. After implementing the machining strategy and tooling selection the overall machining time was reduced by over 1.5hr from its original machining time.

Total Machining Time: 54 Minutes

Clamp 1

Clamp 2

Clamp 1

face milling

1. Face Milling

Side Shoulder Milling Icon

2. Trochoidal & Peel Milling

Side Shoulder Milling Icon

3. Trochoidal & Peel Milling

Side Milling Finishing Icon

4. Pocket, Wall, Radius Finishing Milling

Pocketing Icon

5. Pocketing

Drilling Icon

6. Drilling Before Reaming

Reaming Through Hole Icon

7. Reaming

Drilling Icon

8. Drilling

Drilling Icon

9. Drilling

Drilling Icon

10. Drilling

Pocketing Icon

11. Pocketing & Over-Ribs Machining

3D Profiling Icon

12. Counterbore Pocket Milling

Clamp 2

1. Face Milling with Side Milling

2. Slot Milling

3. Trochoidal, Peel Milling on Slots





Tooling Solutions:

M1200

Face Milling

Used in Operation 10

View Products

VariMill III, Series 772E (7-Flutes)

Trochoidal & Peel milling

Used in Operation 20

View Products
View Products

VariMill II Long, Series 5718

Pocket, Wall, Radius Finish Milling, Counterbore Pocket Milling

Used in Operation 30, 120

View Products

VariDrill 3xD Drill

Drilling Before Reaming, Drilling

Used in Operation 60, 80, 90 100

View Products

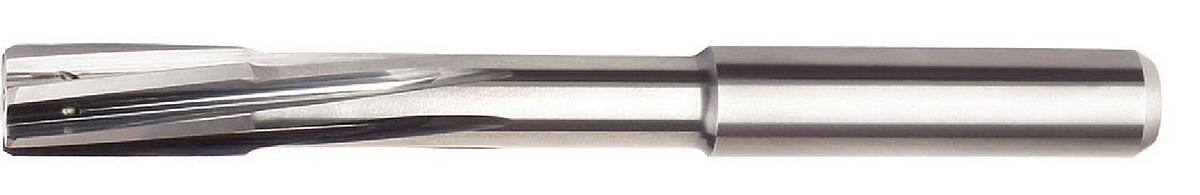

HSR Reamer

Hole Finishing

Used in Operation 70

View Products

Interested in learning more about our Aerospace solutions?

Talk to one of our WIDIA Aerospace experts to discuss our proven strategies.
