VSM490

4-Edged, Double-Sided 0° Victory™ Shoulder Mill (VSM)

Delivers high surface quality and productivity in shoulder milling applications, including multiple passes (step-down) applications.

Eliminates finishing operations in many applications.

Versatile: steel, cast iron, stainless steel, titanium, aluminum; from roughing to finishing applications.

Double-sided strong insert with 4 cutting edges; high positive geometry for lower cutting forces.

See the Entire Portfolio

VSM490-10™

Ap Capabilities: Up to .394" (10mm)
Screw-On End Mills: 16–32mm (Metric Only)
Weldon® End Mills: .625–1.5" (16–32mm)
Cylindrical End Mills: .625–1.5" (16–32mm)
Shell Mills: 1.5–5.0" (40–125mm)
Shell Mills JIS: 80–125mm (Metric Only)
M4000 Cartridge Milling System: 6–12" (125–315mm)

True 0° roughing tool with embedded finishing capabilities all in one tool.
Up to Ap1 max = .394" (10mm).
Best-in-class wall finish in axial stepping-down jobs.
Lower cutting forces and real soft cutting action.
Perfect fit for taper 40 spindles and driven units.

Super-positive rake design for low machine power consumption.
Integrated wiper facet for great surface floor finish.

Four insert geometries for all material groups in shoulder milling applications

For non-ferrous materials.

Applications

Face milling with modular M4000 cartridge milling system.
Full slotting with 100% radial engagement.
Shoulder milling with step-down capabilities and great wall finish.
Shoulder milling with low axial and high radial engagement.
Shoulder milling with low radial and high axial engagement.
HPC face milling. Excellent choice to clean up castings.
Trochoidal slot milling.
Z-axis plunge milling.
Contour milling.

Best Practices

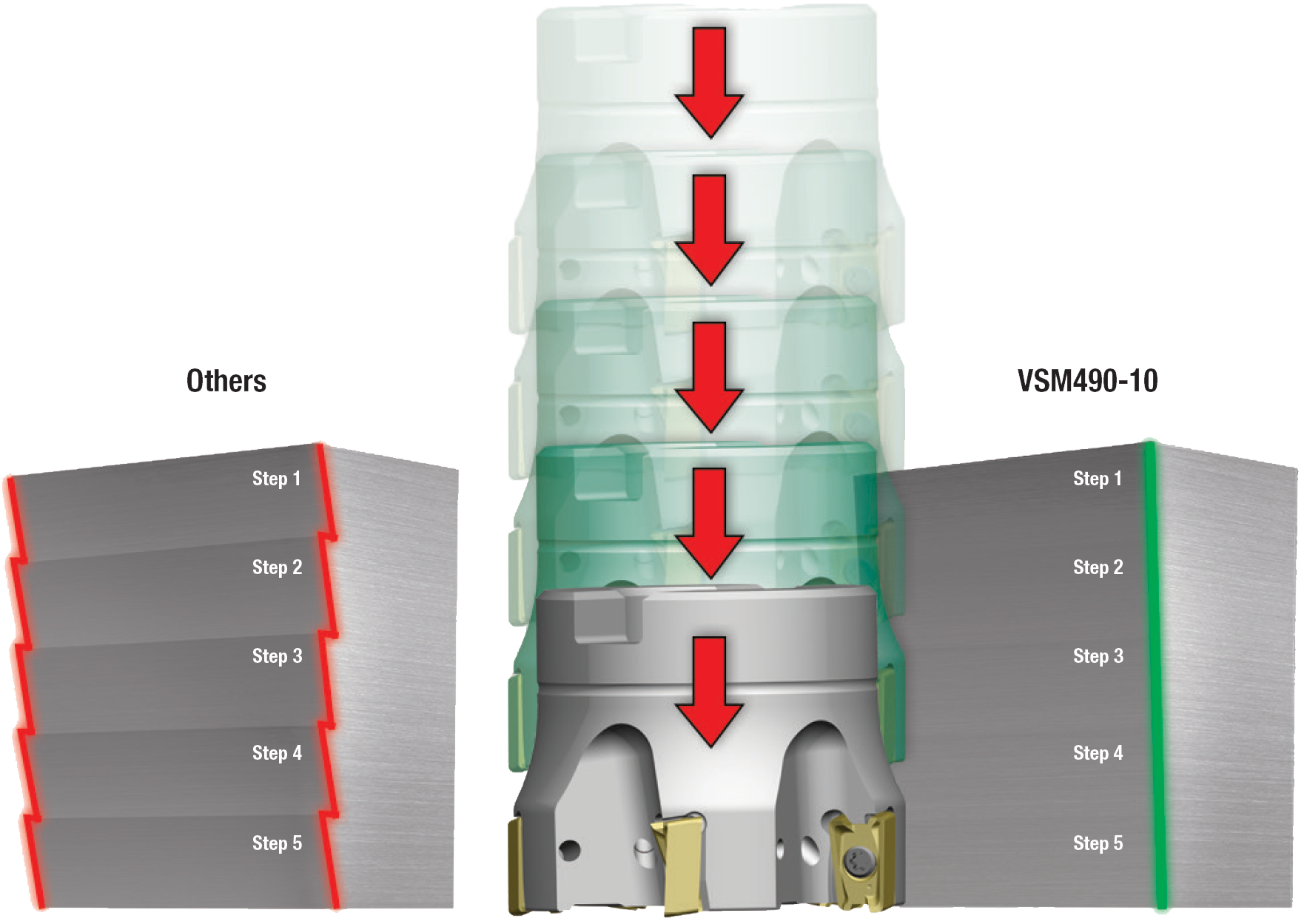

Best-in-class wall finish with VSM490-10 at axial stepping-down jobs. For many shop floor setups, no additional finishing is required and has a positive impact on shorter machining time and lower tooling cost.

VSM490-15™

Ap Capabilities: Up to .591" (15mm)
Screw-On End Mills: 25–35mm (Metric Only)
Weldon End Mills: 1–1.5" (25–40mm)
Cylindrical End Mills: .625–1.5" (25–32mm)
Shell Mills: 1.5–6.0" (40–160mm)
Shell Mills JIS: 80–160mm (Metric Only)
M4000 Cartridge Milling System: 6–12\" (125–315mm)

True 0° roughing tool with embedded finishing capabilities all in one tool.
Up to Ap1 max = .591" (15mm).
Best-in-class wall finish in axial stepping-down jobs.
Lower cutting forces and real soft cutting action.
Perfect fit for taper 50 spindles.
Coarse, medium, and fine pitch shell mills available.

Super-positive rake design for low machine power consumption.
Integrated wiper facet for great surface floor finish.

Four insert geometries for all material groups in shoulder milling applications

For non-ferrous materials.

First choice for stainless steel. Lower cutting forces.

First choice, especially when machining steels.

First choice for cast iron, and also recommended for heavy applications.

Wall Quality

Competitor Tool

Traditional tools are designed to achieve a 0° wall, but exhibit poor performance when machining walls in multiple passes.

VSM490-15

VSM490-15 eliminates the mismatch and minimizes the marks left behind in step-down milling operations. By increasing wall quality and avoiding a second tool, productivity increases significantly.
